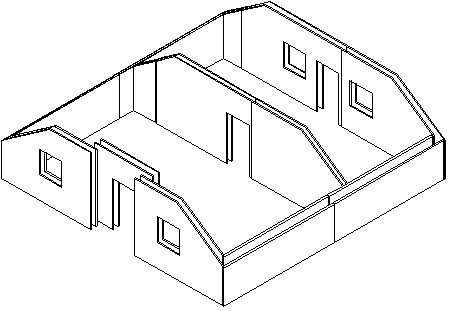

Isometric view for layout plan (example)

By enabling this tool, you can configure the program to automatically create shading so that recesses are displayed more clearly in placing drawings.

Click to show or hide the dimensions of floor plans that were dimensioned using dimension strings.

You can label a panel corner with a symbol to make the position of the precast unit on site clearer. You can switch these symbols between visible and hidden here.

By selecting this tool, you can show or hide the symbols for the wall type and the visible side of a wall. The side with the symbol indicates the visible side.

The following symbols are used to mark the individual wall types. Deleting the symbol automatically deletes the entire design.

or Double wall
or Concrete wall
Brick wall
Wall panel
Sandwich wall
Thermal wall without in-situ concrete
Thermal wall with in-situ concrete
n-layer wall

By enabling this tool, you can hide the error notes generated automatically by the program. This can be useful when you want to present preliminary layouts to clients.

You can use this button to switch the top reinforcement layer of slabs on and off.
Applied to walls, this button switches all reinforcement units with the description 'visible' or with the index 1 in all layers on and off. In addition, this button shows or hides the reinforcement placed in in-situ concrete.

You can use this button to switch the bottom reinforcement layer of slabs on and off.
Applied to walls, this button switches all reinforcement units with the description 'invisible' or with the index 2 in all layers on and off.

Click to show or hide the joint meshes created using the FEA Reinforcement tool.

You can use this button to show and hide filling objects, sections, hollow blocks, balls (BubbleDeck) and bricks of floors.
If you have selected the exact display of panel components, they are part of the 3D object and cannot be hidden.

Click to show or hide all the fixtures.

If you want to show or hide individual fixtures, use the Visibility of Fixtures tool in the Fixtures module. To show or hide all the fixtures in individual views, you can use the View or Section Display tool in the Shell module.

This table contains the most important data for placing drawings.

Click this button and select the wall element for which you want to create the table. A preview of the table is displayed attached to the crosshairs. Place the table as you want.

By enabling this tool, you can output the existing stirrup cages, joint reinforcement etc. in the form of a list.

A section of the entire cage is displayed in the bending schedule for stirrup cages. This ensures that longitudinal reinforcement is placed correctly.

When you have already created slab or wall element stacks in the Prefab Delivery Units module, you can use this tool to generate an element stack list and place it in the drawing file. The slab and/or wall elements on the stack are listed.

Note: In addition, a stack diagram can be placed for half floors and prestressed hollow core elements.
If there are different types of prestressed hollow core elements within a stack level, these elements are given a hatching style as a means of identification.
If the top stack level consists of a single element, this element is displayed centrally in the stack, regardless of its actual position on the stack.

The stacks of a truckload are combined graphically. A truckload is labeled with the number of the truck, the vehicle type as specified in the catalog and the total weight of the load.

By enabling this tool, you can show the length of the connecting joints for the active slab elements on the drawing file. The program uses this length to estimate the mesh reinforcement required for the connecting joints.

Click Show joint reinforcement and select the relevant placement fields.

The text is displayed attached to the crosshairs. Place the text as you want.
