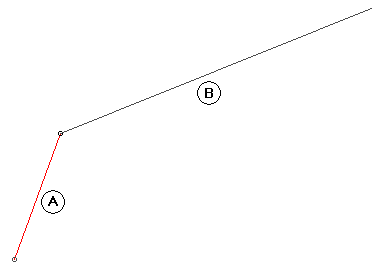

A

Segment to which the current settings apply (highlighted in red)

B

Additional segments

Use the following tools to control the preview:

Reduce

Expand

Insert Point
Use this tool to divide the current segment.

Delete Point
You can use this tool to join two segments. Click the point you want to delete.

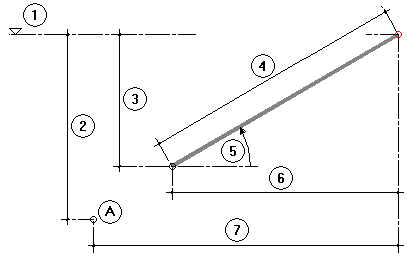

A

Eaves

1

Absolute height

2

Height above eaves

3

Height above previous point

4

Segment length

5

Angle

6

Offset to previous point

7

Distance to eaves
