LOADQX

Define and calculate a line load in longitudinal direction*) on the structural members assigned to this load by assemblies

*) The load follows the “load line”, which results from the connection of the load reference points of the cross sections of the loaded elements. Positive values of q are oriented in the direction of the load line.

The definition itself is done in the same way as for LOADQY.

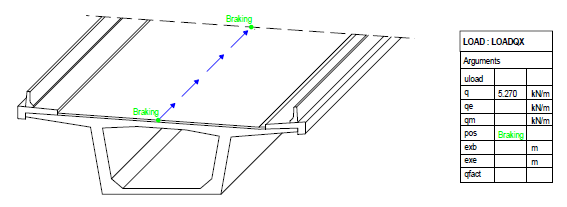

EXAMPLE / TYPICAL APPLICATIONS: Braking force: Constant uniform load in longitudinal direction in the reference point “Braking” (in the middle of the roadway at surface level)
