Match View

Tool(s): Plan Display

You can match an isometric view of selected elements and place it anywhere in the drawing.

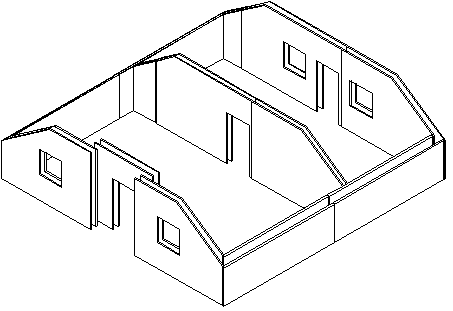

Isometric view for layout plan (example)

To create a view

1. Click Plan Display (How) and then Match view.


   Activate Plan Display in one of the following ways

   • Actionbar:Rol Elementos prefabricados Tarea Forjado prefabricado Grupo de herramientas Forjado prefabricado

   • Menu bar: Create Precast Precast Slab/Precast Wall/Precast Element

   • Palette: Tools Create area in the following modules:

   Precast slab

   Precast Wall

   Precast Element

2. Go to the viewport toolbar and select an isometric view (, , , ) for the current viewport.
3. Open a selection rectangle around the precast elements you want to display.

   Note: You cannot create an isometric view of a suspended brick slab.

4. Set the view back to plan view for the current viewport.
5. Place the view anywhere in the workspace.
