Shortcut menu Using the mouse in navigation mode
If you have activated

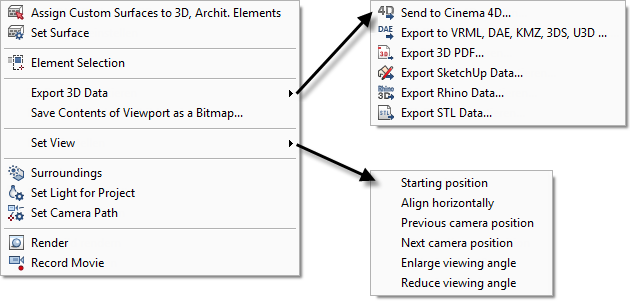

Navigation Mode (How) and placed the cursor within a viewport, you can open the following shortcut menu by right-clicking.
Using the tools on this shortcut menu, you can modify and manipulate the scene without having to select other tools or switching navigation mode off.
|
Initial situation:
|
Assign Custom Surfaces to 3D, Archit. Elements
Assigns custom surfaces to 3D surfaces, 3D objects and architectural elements. To assign a surface, simply drag the surface to the relevant object.
Set Surface
Opens the properties of the surface or background clicked. You can then change these properties.
The following dialog boxes open:
Set Surface.
Element Selection
Using Element Selection, you can select the design entities you want to display in the current viewport. The program temporarily hides all the other design entities.
Click Element Selection again to switch it off.
Export 3D Data
Opens a submenu where you can select the following tools:
Save Contents of Viewport as a Bitmap
Saves the contents of the current viewport as a bitmap.
Set View
Opens a submenu where you can select the following tools:
Note: The first four tools apply to the current camera path (see
Setting the camera path)! If you have not defined a camera path, these tools have no effect.
Defines natural lighting conditions (location, season, position of north, position of sun and so on) for the 3D model.
Sets artificial light sources for the 3D model. These light sources can be both inside and outside the model.
Defines camera positions, thus creating the story board for a movie. You can play back this movie immediately or later. If you want, you can also record it.
Calculates photo-realistic bitmaps from the current view of the 3D model, taking into account the selected lighting properties and surface properties.
Calculates a sequence of animated or rendered bitmaps from a 3D model, saving this sequence as an AVI movie.
|
