Section display

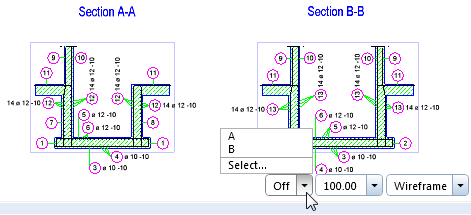

The Section Display list box on the viewport toolbar lists associative sections placed with a clipping line in addition to architectural sections crated with Clipping Path.

To display model data within the section object, you have the following options:

• Open the Section Display list box on the viewport toolbar and click the section identifier.
• Open the Section Display list box on the viewport toolbar, click Select and then the section identifier.

To switch section display off again, open the Section Display list box on the viewport toolbar and click Off.
