We added new options to the IFC Export, Import Settings. To open these settings, click
when you transfer data using
Import IFC Data or
Export IFC Data.

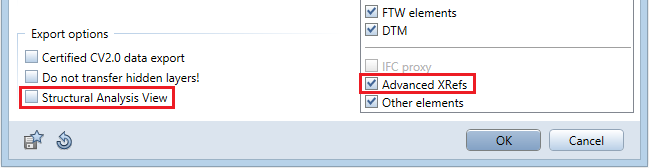

With the new Structural Analysis View export option, you transfer structural data of the following architectural elements: wall, column, downstand beam, floor slab, upper slab and openings. These elements are preset in the Elements to be transferred area. Structural programs can use these data as the basis for calculations. Any settings for Additional offset are not taken into account; the Do not transfer hidden layers option is not available.
You can select Advanced XRefs in the Elements to be transferred area, thus transferring elements embedded in Advanced XRefs. Allplan transfers the elements in accordance with the appropriate IFC ObjectType.
