Sweep path

The Sweep Path tool replaces Tessellated Solid.

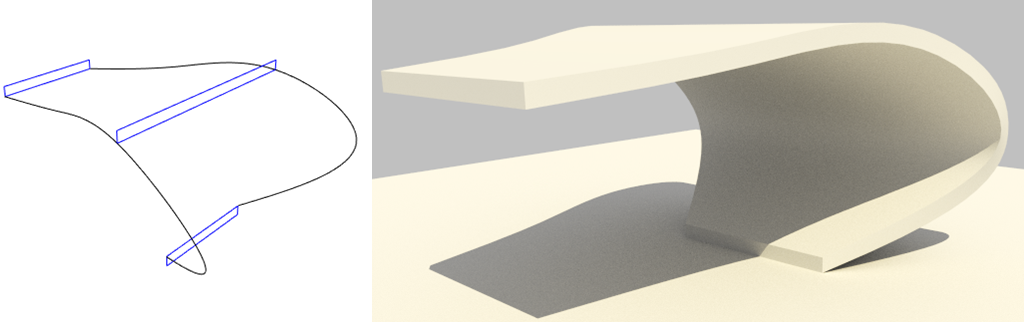

Using Sweep Path, you create 3D solids or 3D surfaces from at least two profiles that are joined along at least one path. It is not necessary that the profiles are planar or have the same number of points or corners.

You can use as many profiles and paths as you want. The paths may even intersect; in this case, you must use at least two paths.
