More options for converting elements

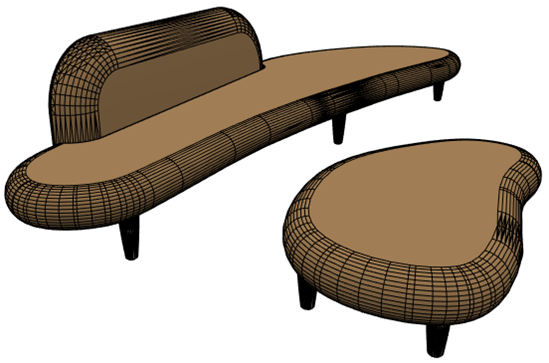

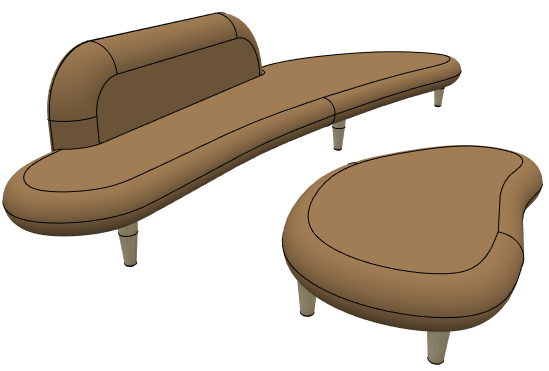

Before you can use general 3D elements, spheres or cylinders in other modules, such as the architectural modules, you have to convert the curves to polygonal elements.

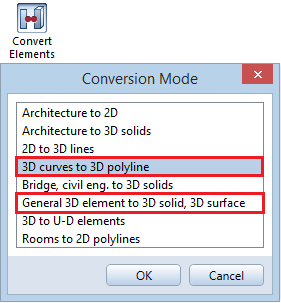

To do this, you can find new options in the Convert Elements tool:

• 3D curves to 3D polyline
• General 3D element to 3D solid, 3D surface

You can set the type and quality for conversion.

2D to 3D

Using the 2D to 3D lines option, you can now convert 2D arcs and 2D splines to 3D, too.
