Arrangement

This is where you define where the dimension lines are displayed with reference to the view.

Quadrants

By default, the program places the dimension lines below and to the right of the view. When you select this option, the view is internally subdivided into four quadrants. The program also creates dimension lines above and to the left of the view in accordance with the positions of the elements.

Overlapping

When you select this option, separate dimension lines are created for elements that overlap. "Overlapping" means that the starting point of an element coincides with the starting point of another element.

In addition, the program creates separate dimension lines for fixtures with identical dimension string indices if this option is enabled.

Distance to component

You can define the distance between the first dimension line and the view. The distance between the individual dimension lines depends on the settings you have made in the Dimension Lines module's option.

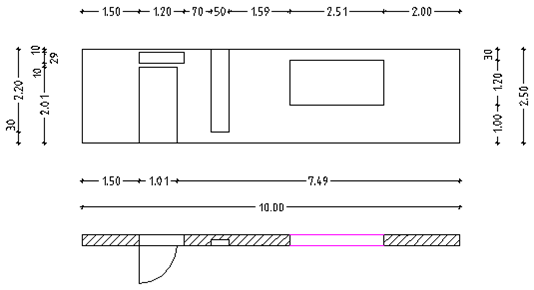

Example of dimensions created using the Quadrants and Overlapping options.
