Starting Length with Stagger

The settings for Stagger and Placing Direction affect the starting length. There are two scenarios:

• if the staggered splice is deactivated, the placement begins with the selected initial length

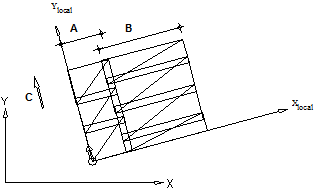

• if the staggered splice is activated, the placement begins depending on the selected placing direction, as follows:

A Modifiable initial length

B original mesh length, can be set using the Cross-Sections Catalogs

C Transverse direction

D Longitudinal direction
