Label (Site) of a (Composite) Element

Labeling Components

You can use the Label (Position) tool to label an element/composite element, used to represent the position of a location line. The station, the radius and possibly clothoid parameters are labeled along the main points of the curve.

To label a composite element used to represent a position

1. Click Label (How).


   Activate Label in one of the following ways

   • Menu bar: Create Terrain Site Plan

   • Palette: Tools Create area in the following module(s):

   Site plan

2. In the Input options, click Site.
3. Click the element or composite element.

Example

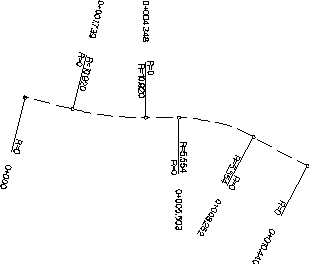

Example: Labeling a Single Element / Composite Element Site

Single Element

Composite Elements

Note: In the case of compound elements, the symbol number and the type of label used are based on the values set in Modify Compound Element.
