Selecting a plant catalog

Options (Overview of options, Configurations)

Catalog for plants

You can select the plant catalog you want to use for the Landscaping module (for example, Bruns).

To select a catalog

1. Click Options (How).


   Activate Options in one of the following ways

   • Menu bar: Tools

   • Toolbar: Standard
2. Click Catalogs.
3. Select a catalog for Landscaping.

Note: You can modify the Bruns group names freely in Allplan.

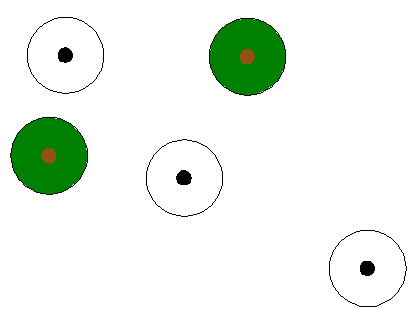

Display existing trees

You can specify how tree and plant elements are displayed:

• Use colored fills for all elements


  All tree elements appear in color, regardless of the settings which were active when you entered the elements.
  When you switch to Color or monochrome as element property, the elements appear in their original color again.



• Display monochrome elements without fills


  All tree elements appear in black and white, regardless of the settings which were active when you entered the elements.
  When you switch to Color or monochrome as element property, the elements appear in their original color again.



• Color or monochrome as element property (default setting)


  When entering tree elements, you can specify whether they are to appear in color or in black and white.
