All examples are based on the factor = 0.20 and the lifting bolt offset = 0.60.

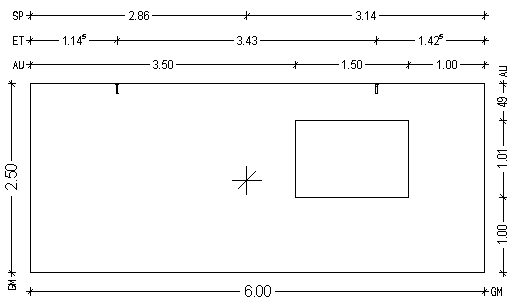

Example 1: wall with opening and two anchors at the top

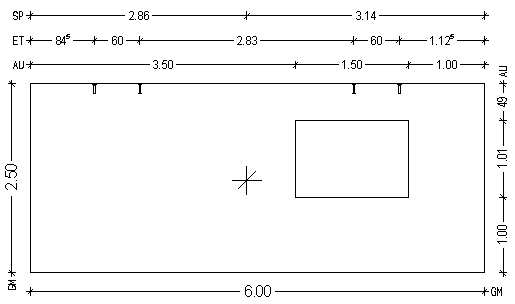

Example 2: wall with opening and four anchors at the top

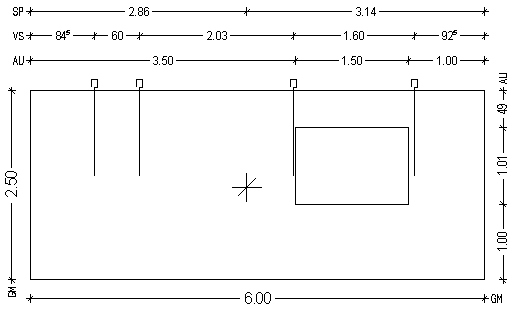

Example 3: wall with opening and four lifting bolts that partially extend into the opening
