Example: Support reinforcement

Requirement:
Method 1: 3D general arrangement drawing with views and sections
Method 2: 2D general arrangement drawing
Method 3: 2D general arrangement drawing

1

Method 1: 3D model on
Method 2: 3D model on
Method 3: 3D model off

Reinforce with 3D model option is active or not ( Options, Reinforcement page)

2

Click tool

Support Reinforcement

2a

Only with method 2:
Select view
Old / New
Select spatial orientation

3

Click points

4

Modify the support area and define the layer depth and concrete cover at top

5

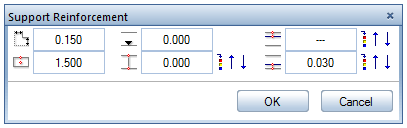

Set parameters

Result:
