Tool(s): Niche, Recess, Slit, Opening
Type
This is where you can define whether you want to insert a niche or a slit, recess or opening in the wall.
Differences between niche - recess - polygonal recess
Shape
This is where you select the shape of the opening.

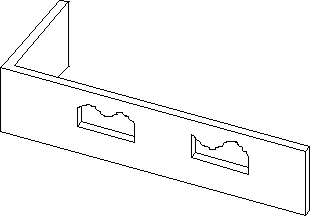

Note: Before you can select the Opening with an outline saved as a symbol type, you have to create the outline of an opening in elevation using the tools in the Draft module and save it as a symbol. The height, length and width of the opening result from the maximum height/length and width of the symbol and cannot be changed.
Note: The height of an Opening with an outline saved as a symbol in the z direction is defined either by TL or by BL, as you cannot change the height of the opening. The width of the opening is defined by the width of the symbol.
Parameters
Width (for niche, slit, recess, opening)
Depth (for niche, slit, recess, opening)
Height (for niche, slit, recess, opening)
The parameters are displayed in the Preview area.
Relative height
Click Height... to define the height of the opening. You can define the height as an absolute value. You can also associate the height of the element with default or custom reference planes or relative to other building elements.
Relative to TL, BL
The height setup is represented by icons. Click Height... to make changes.
Visibility option
This is where you can specify whether slits, recesses and openings are to be displayed in sections and 3D views.
Load favorite, Save as a favorite
To save a niche, recess, slit or opening as a favorite file, click .
To retrieve a favorite file, click .
Representation in plan
This is where you can specify how niches, slits, recesses and openings are to be displayed in plan view.
Library element
To insert a defined smart symbol, click and select the smart symbol in the Library palette.
