LOADSETTLE

Apply a displacement to a spring (type soil spring) to calculate settlements

The displacements can be defined related to the global coordinate system or related to the local coordinate system of the particular spring elements (option local).

Arguments

dx

Displacement in x-direction [length]

dy

Displacement in y-direction [length]

dz

Displacement in z-direction [length]

local

If this option is activated, the defined displacements are applied related to the local coordinate system of the particular spring elements, if not, related to the global coordinate system.

Note: With respect to an appropriate engineering approach in fact no displacement is applied to the spring element, but a fictitious force, which would cause that displacement in the spring, if only this one would be active. This force is not considered in the sum of loads of the system.

EXAMPLES / TYPICAL APPLICATIONS

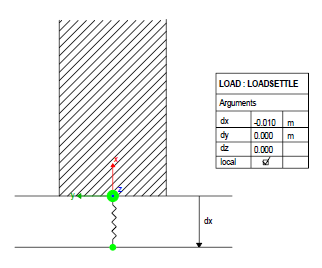

Example: Vertical displacement of a soil spring (abutment or pier defined per default)

Possibility 1: local

Possibility 1: global
