Leading component

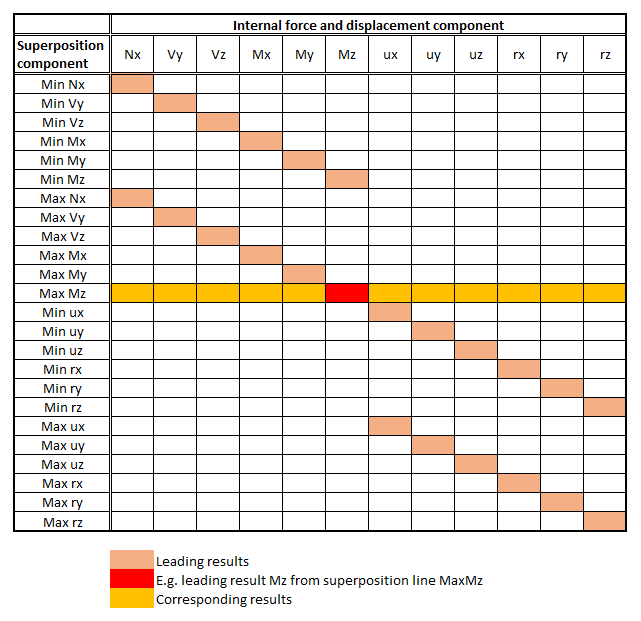

Select the desired superposition component (superposition line of the superposition matrix), for which a certain result should be read from an envelope.

Use the two buttons to select the minimum or maximum superposition component.

Use the drop-down menu to select the desired internal force or displacement of the superposition component or a stress point, which has been defined for a stress leading superposition.

Thus all maximum and minimum superposition components for all internal forces and displacements can be selected.

In combination with selecting the respective internal force component in Forces or the displacement component in Displacements all results of the envelope can be addressed.
