Render palette

Puedes seleccionar unas de las resoluciones predeterminadas, definiendo así el tamaño de la imagen generada.

Al usar la paleta Tamaño de renderizado puedes seleccionar una resolución que difiera de la resolución estándar. Este valor define el tamaño de la imagen renderizada.

Select the renderer. You can choose between Standard, Physical and Redshift here.

Note: The Redshift renderer is only available in the Allplan Professional packages or higher.

The physical renderer calculates many scenes better and/or quicker than the standard renderer. Problems that might occur with Standard, such as Moiré effects for tiled textures, do not occur with the Physical version. Redshift is a high-performance renderer from Maxon, which generally provides the quickest and best results. Furthermore, there are also advanced camera settings for Redshift (stereo-spherical and fish-eye).

Tip: Results can vary depending on the model and scenery. So, do some trial runs with reduced settings to find out which renderer works best for you.

You can choose between the rendering methods GI {...} (global illumination) and No GI (without global illumination).

Rendering without global Illumination produces results in less time and is therefore eminently suitable for quick sample renderings. Shining lights and sharp edges of shadows are clearly visible. However, it is not possible to assess lights, colors, color gradients or shadows.

For rendering methods with global illumination GI {...} you can determine the primary and secondary rendering methods. With the standard and physical renderers, these are:

GI {IR + IR}
Both methods use Irradiance Cache here.
This setting is ideally suited for interior views with artificial lighting.
GI {IR + QMC}
The primary method uses Irradiance Cache and the secondary method uses Quasi Monte Carlo. This calculation can take a bit longer.
This setting is ideally suited for exterior views with natural lighting; artificial lighting will also be included.

Tip: The GI {IR + QMC} method calculates shadows more precisely. If shadows are very important for your scene, you can also render interior views with this method. However, calculation can take a little longer.
If the resulting image is distorted, you can compensate for this by increasing the quality (see Quality - Default) and optimizing the image for interior views (see Optimize for).
GI {IR + Lightmaps}
The primary method uses Irradiance Cache and the secondary method uses Lightmaps.
This setting is ideally suited for small-area scenes with several light sources that are near and parallel to walls or similar objects. When you render these scenes with other rendering methods, you sometimes get strange lighting effects, such as light spots distributed irregularly.

Example of a rendering result without and with Lightmaps

Note: Rendered images created by this method are somewhat brighter than those created by other methods.

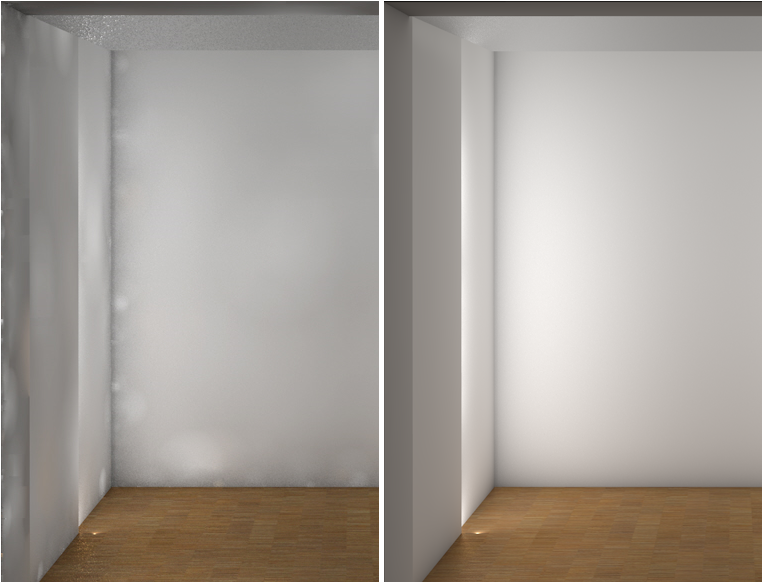

Resultado del renderizado sin mapeo de luces (a la izquierda) y con una calidad media de mapas de luces (a la derecha).
GI {IR Legacy}, GI {IR Legacy+ QMC}
These settings correspond to the rendering modes GI {IR + IR} and GI {IR + QMC}. However, these modes use Irradiance Cache of Allplan 2017 and earlier versions.
Use these rendering modes if you want to edit projects from earlier versions. This ensures that the rendered images are similar to those created in earlier versions.

GI {BF + IPC}
The primary method uses Brute Force and the secondary method uses Irradiance Point Cloud.
This rendering method is particularly suitable for scenes containing several light sources or where the lighting conditions are difficult.
GI {BF + BF}
Both methods use Brute Force here.
The GI renderer Brute Force is the most fundamental and precise renderer. Interpolation of the calculation results does not take place. This calculation can take a bit longer.

By using the Options palette, you can achieve visual effects and include surface elements in the rendered images.

Cuando seleccionas esta opción, el programa cubre el fondo de la imagen con una canal alfa. Es decir, el programa recorta un color de fondo o bitmaps al calcular la imagen.

Esto es necesario si quieres colocar la imagen renderizada y transparente en la parte de arriba de un fondo diferente (mezcla alfa).

Si seleccionas esta opción, Allplan incluirá el plano virtual del terreno en la imagen renderizada. De lo contrario, se excluirá.

Optimizes the calculation for exterior views (with natural lighting) or interior views (with artificial lighting and difficult lighting conditions).

This setting is directly affected by the Samples accuracy setting in the Irradiance cache area (see Advanced settings palette).

The gamma value of "Global Illumination" controls the brightness of the entire scene in the rendering result.

By using this value, you can brighten up dark images or darken overexposed images. Dark images result from small values for Diffuse depth (see Advanced settings palette).

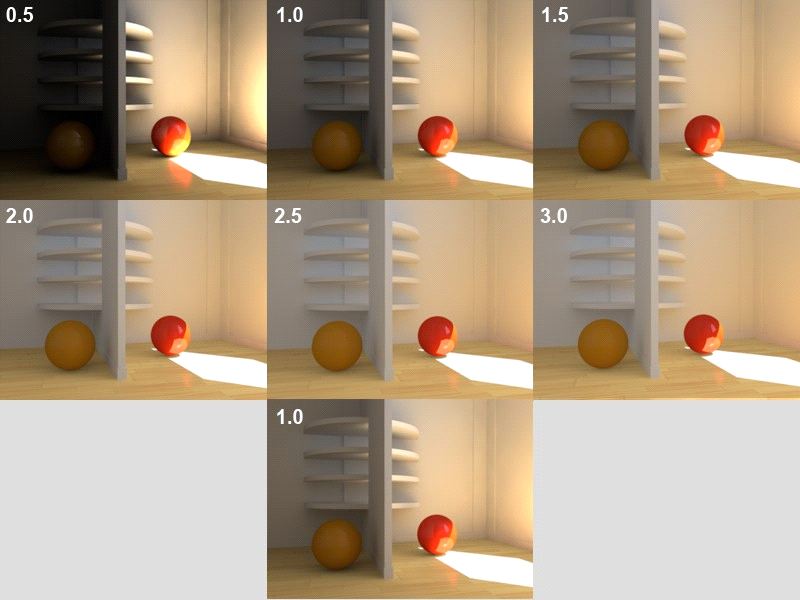

Ejemplos de imágenes renderizadas (1-6) con distintos parámetros para la iluminación global (= valor gamma) y una configuración constante para la profundidad difusa = 3.

Para que puedas comparar los resultados, la imagen de la parte inferior se tiene que renderizar con los siguientes resultados: iluminación global = 1; profundidad = 8.

You can select one of the predefined quality levels for the rendered image. Remember: The better the quality, the longer the calculation will take.

Use the Advanced settings area to customize the settings for the quality levels.

Opens the Advanced settings palette, where you can define advanced rendering settings, thus controlling the quality of the resulting image.

La oclusión ambiental es una técnica de sombreado que puedes usar junto con la iluminación global. La oclusión del ambiente genera sombras realistas en un periodo de tiempo relativamente corto. Otra ventaja de esta técnica que es enfatiza los detalles aplicando las sombras a los bordes y esquinas.

Por ejemplo, puedes usar la oclusión ambiental para simular las condiciones de iluminación cuando el cielo está nublado y no hay luz del sol directa. Puedes usar esta técnica para acotar tanto las escenas interiores como las exteriores.

When you select this option, you can define additional AO parameters in the Advanced settings palette.

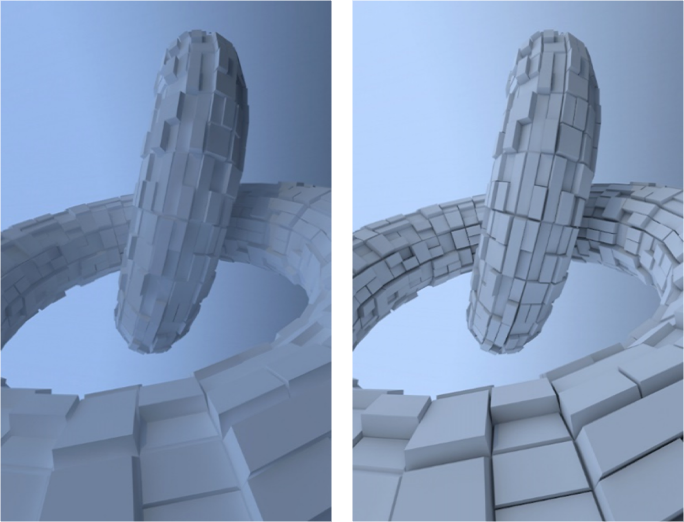

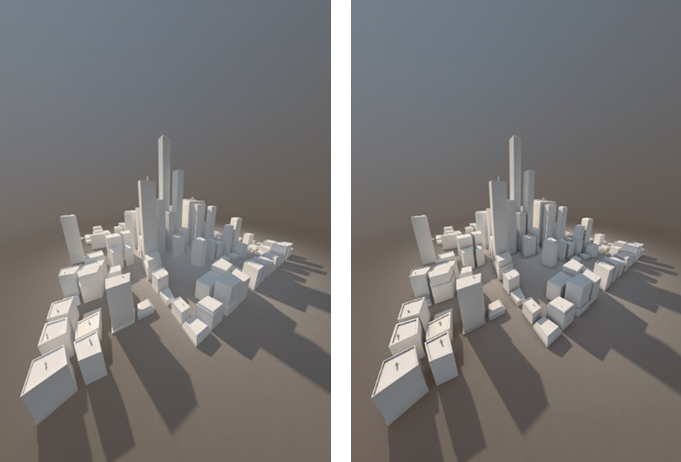

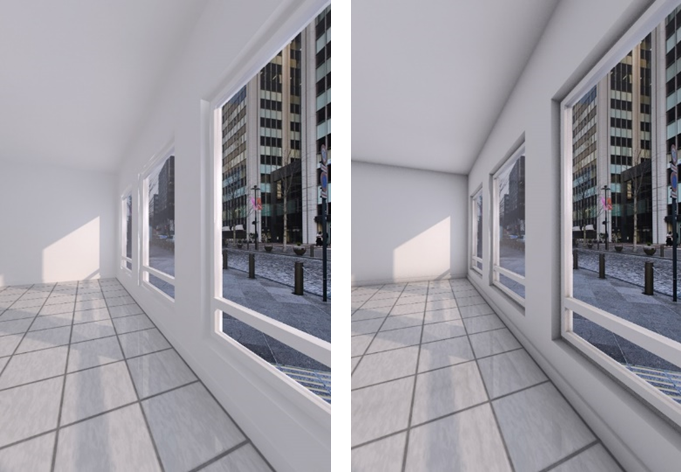

Las siguientes ilustraciones muestran los efectos de la oclusión ambiental. La imagen de la izquierda no usa la oclusión ambiental, mientras que la imagen de la derecha sí.

Cuando la opción Blooming esté activada, se colocará un anillo de luz adicional alrededor de las fuentes de luz como el sol o las fuentes de luz con forma de puntos. El requisito previo es que el cielo físico se seleccione como fondo a través de la opción

Fondo (seleccionar) o una o más fuentes de luz configuradas con la opción

definir luz del proyecto (seleccionar).

Activate Set Project Light in one of the following ways:

Actionbar:Rol Modelado Tarea Visualización Grupo de herramientas Animación, iluminación

Menu bar: Change Presentation Animation

Palette: Tools Change area in the following modules:

Animation

Shortcut menu: Hovering over the empty workspace Right mouse button additional tools

Activate Surroundings in one of the following ways:

Actionbar:Rol Modelado Tarea Visualización Grupo de herramientas Animación, iluminación

Menu bar: Change Presentation Animation

Palette: Tools Change area in the following modules:

Animation

Shortcut menu: Hovering over the empty workspace Right mouse button additional tools

Cuando se activa el destello de lente, se intercalan en la imagen reflejos de luz circulares adicionales (comparables al reflejo de una fuente de luz en la lente de una cámara).

If you select this option, Allplan will include the setting for the depth of field (DOF). This is configured via

3D view (Window Toolbar).

When you render scenes with great differences in brightness, such as scenes that contain both bright areas illuminated directly and shaded areas, you can thus reproduce the full range of light intensities present in natural scenes by reducing the dynamic range.

This is controlled via gamma correction (0 - 10) and light sensitivity (ISO value).

Important!

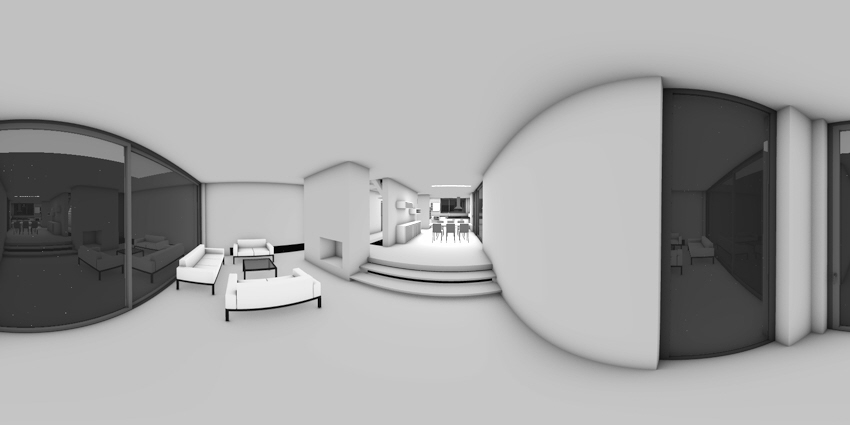

So that Allplan displays spherical panoramas correctly, you must select the image resolution so that it is at a ratio of 2:1 (for example, 4,000 x 2,000 pixels). In addition, you must select the Latitude, longitude option for the Mode and save the rendered image in JPG or TIF format.

Only if, under Renderer , the standard or physical setting has been selected and the spherical option has been activated.
