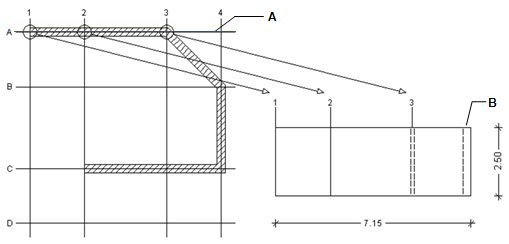

Example of displaying axes automatically in views

A Reference axis; here: axis A

B Axis 4 is not displayed, as it does not intersect the 3D component.

Display when selecting a different axis

• When you define axis B as the reference axis, only axis 4 is displayed.
• When you define axis C as the reference axis, axes 2, 3 and 4 are displayed.
• When you define axis D as the reference axis, the program issues a message as it does not intersect any 3D component.
