Configuration BubbleDeck: Design + Cobiax Slab: Design Configuration BubbleDeck: Design + Cobiax Slab: Design
Fixture for lifting points
File / Element:
The fixture defined by the file name and element name is used as the default setting for displaying the lifting points.
Attention: The file and element names must match those specified in Allplan's fixture catalog! Watch out for spaces, lowercase letters and uppercase letters!
Parameters
You can use the following parameters to calculate the lifting points (connection points) depending on the element width. The automatic feature is only available for rectangular elements. Elements for which no lifting points can be calculated will have Automatic fixtures incorrect element status and will be labeled accordingly.
Factor n for length 1/n:
Initial value measured from the element edge in the longitudinal direction.
Length a:
[cm] Value added to the initial value when the two connection points are in neighboring lattice girders.
Length b:
[cm] Value subtracted from the initial value when the two connection points are in one lattice girder.
Length c:
[cm] Distance between the two connection points when they are in one lattice girder.

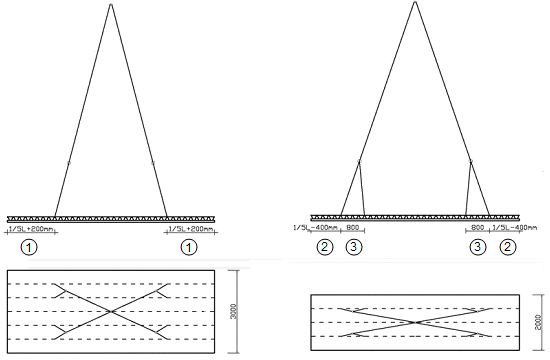

(1) Factor + Length a
(2) Factor + Length b
(3) Length c
|
