Deactivate 2D interaction of Components

In the properties palette you will now find the new 2D interaction option for components or individual layers of components. This allows you to control the interaction of architectural components with other components in the floor plan, the 3D representation is not changed.

The 2D interaction option is active by default. If you deactivate the option, the components are no longer intersected in the 2D floor plan. Certain 2D lines can be hidden, for example.

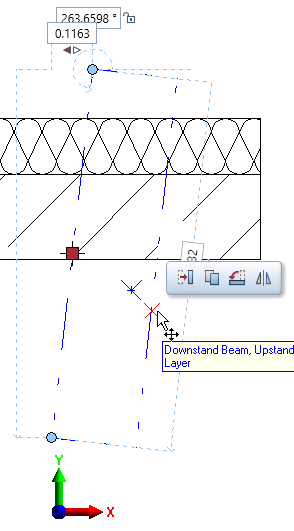

Figure: Option 2D interaction of the beam is disabled
