Adding a point to a 3D surface or a local reference surface

Adding points to a 3D surface or local reference surface

To add a point to a 3D surface or a local reference surface

1. Select the 3D surface or local reference surface by clicking within this surface.

   Tip: If an architectural object (for example, a slab) is associated with the local reference surface, you can use the Objects palette to hide this architectural object. This makes it easier for you to select and edit the reference surface.

2. Point into the surface.

   The program marks the point; the context toolbar appears.



3. Click Add point to surface on the context toolbar.

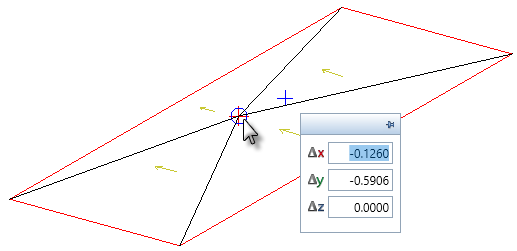

   The starting point is marked in the surface. The new point is attached to the crosshairs. If the new point is not at the same height as the surface, arrows indicate the inclination of the resulting partial surfaces.



4. Insert the new point in one of the following ways:
   • Click the new point in plan or in an elevation or isometric viewport.
   • Enter the coordinates of the new point in the coordinate dialog box.

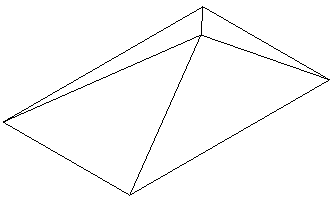

     The program divides the surface.



     Tip: Use the Objects palette to show all architectural objects again. The program updates the height settings of the elements automatically.

5. Repeat steps 2 to 4 to add another point to the edge or surface. Otherwise, select the Esc key to close the tool.
