What are SmartParts?

A SmartPart is a parametric Allplan CAD object that acts according to its own logic, which is independent of the CAD system.

By using simple, parametric descriptions, you can turn complex geometries of basic elements into new, independent and intelligent objects. These objects are worked out in great detail, including all Allplan resources that are available by default (line, pen, color, layer, and so on). To model SmartParts, you can use all general options. For example, you can join SmartParts, slice them or subtract them from each other. However, you need to define these options in the relevant objects beforehand. Depending on the scripting method used, the objects contain 2D and 3D information.

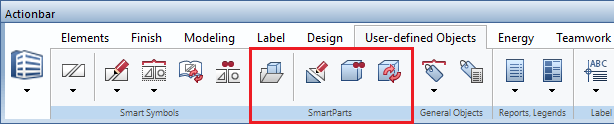

The SmartPart objects and tools are integrated in Allplan. You can find them in the Architecture, Engineering, Draft and Bridge Construction roles - User-Defined Objects task. For example, you can use the Insert SmartPart tool to open the dialog box for selecting a SmartPart file. You can also find the appropriate modification options on the shortcut menu of the SmartParts.
