Door

Task area Components + Interior Finish

You can use this tool to insert door openings in walls.

To create a door

1. Click Door (How).


   Activate Door in one of the following ways

   • Actionbar:Role Architecture Task Elements Task area Components

   • Menu bar: Create Architecture Basic: Walls, Openings, Components

   • Palette: Tools Create area in the following module(s):

   Basic: Walls, Openings, Components

   • Configuration: Architecture Architectural Openings flyout
2. If you want, you can now modify the parameters of the door opening.
   The context toolbar provides several options.


   • Click Properties to set the parameters in a dialog box.
   • Click Get Openings Designer Data from Catalog
     to select an opening that was created with the Opening Designer.
   • Click Match to copy the settings form an existing element.
   • Click Open Favorite File to retrieve parameter settings you have saved as a favorite file.

   Note: In the case of walls with multiple construction layers, it is advisable to click the wall first and then set the parameters for the door opening. This automatically enters the properties of the wall in the dialog box and presents the advanced options for multi-tier walls.

   Tip: Click Get from Library to select and insert an opening that was created with the Smart Window and Door Symbols tool (How).



   Activate Opening Designer in one of the following ways

   • Actionbar:Role Architecture Task Elements Task area Components

   • Menu bar: Create Architecture Special: Walls, Openings, Components

   • Palette: Tools Create area in the following module(s):

   Special: Walls, Openings, Components

3. Set the opening's anchor point.


   In the icon, click to place the transport point.

   The following options are available:







   With openings (for instance doors and windows) only the following options are available:

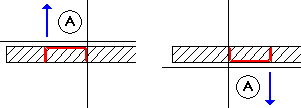

   A preview of the opening is attached to the crosshairs. You can see the direction of opening. (This is particularly important for openings in multi-layer walls where the offset value differs from layer to layer.)



   Wall line clicked = exterior side of opening

4. Click the wall. The system will automatically display the offset between the point you clicked and the nearest reference point (represented by a small arrow). You can accept or change this value. Press ENTER to confirm this value.

   Note: If Prompt for opening width is not selected on the Door Context toolbar, Allplan will create the opening using the width defined in the Properties without prompting you again.

5. The program displays the width of the opening in the dialog line again; if you want, you can change the value. Press ENTER to confirm the desired value.
6. When you have selected an asymmetrical smart symbol which has not been placed correctly in the opening, you can now change its position by clicking the relevant opening.
   When the smart symbol is positioned correctly, click in the workspace with the right mouse button.
7. Place a point for the door swing (if you enabled this option).

   Note: If Place label is selected on the Door Context toolbar, you can now label the opening as you would when using the Label tool.

8. Repeat steps 2 to 7 to draw more openings. Otherwise, press ESC to quit the tool.

Note: For quantity takeoff in accordance with German building regulations, check that the openings are within the components.

Tip: Modifying the door swing without redrawing the door opening

Tip: DIN-compliant door labels
