Axis grids with custom labels

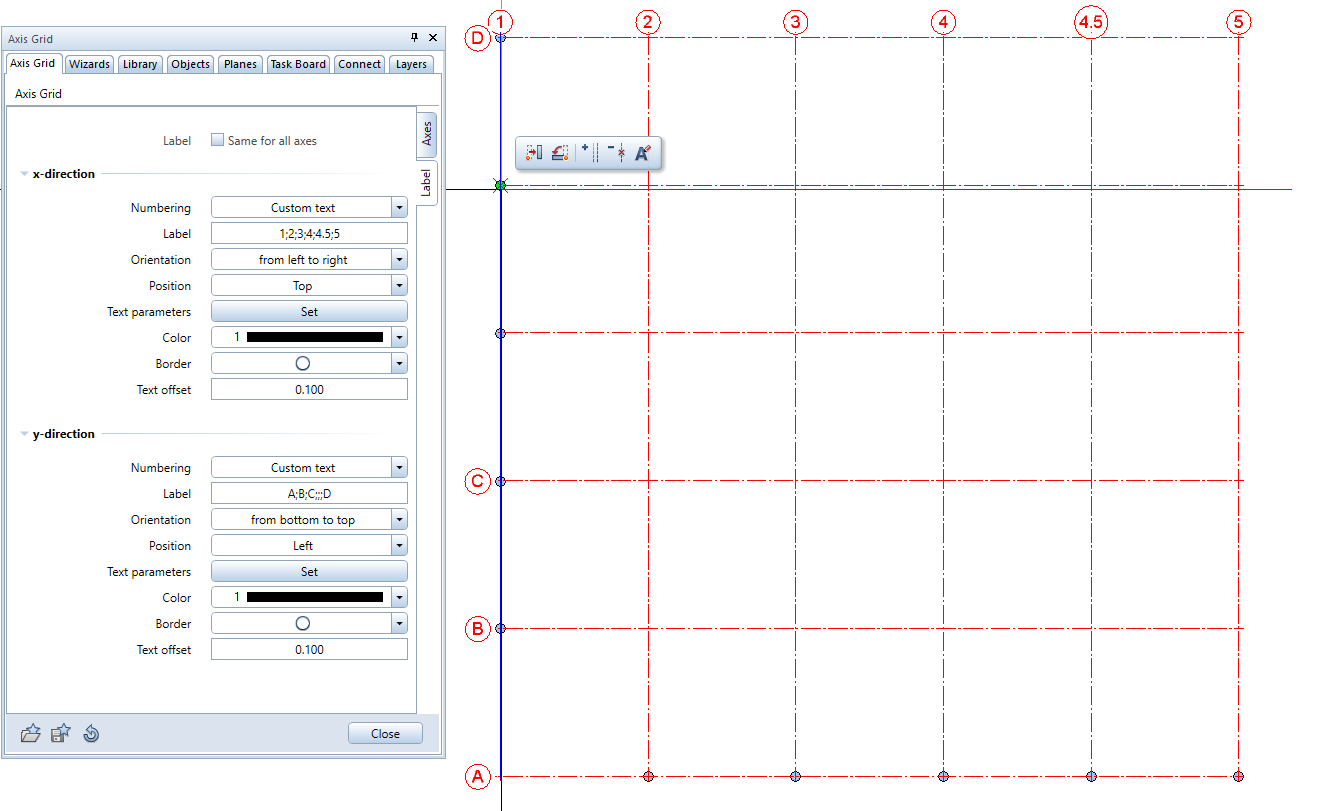

When you work with the Axis Grid tool, you can now use custom labels for the axes. To do this, select Custom text for the Numbering parameter. The Label box appears. You can now enter the labels of the gridlines; use semicolons to separate the labels. When you switch from default numbering to custom text, Allplan uses the numbering defined until you change it.

If you enter more or fewer labels than there are gridlines, Allplan corrects the entry automatically. If there is no text between two semicolons, Allplan does not create a label for the corresponding gridline.
When you switch from custom text to default numbering, you can see a message telling you that the custom text will be lost.

When you use default numbering, Allplan updates the labels when you change or delete axes. But when you use custom text, the labels remain unchanged, that is, Allplan does not label axes that you add later.
You can change the labels of the axes in the palette or by using Modify Axis Label on the shortcut menu of the point handle. As the semicolon separates axis labels, you cannot use it within a label.
