Mesh Placing Angle

You can rotate the longitudinal side of the mesh relative to the specified system angle by placing an angle of your choice. You can enter this angle in two ways:

• by entering it manually (positive = counter-clockwise rotation) or
• by clicking a straight line in the workspace whose angle you want to match.

All the other placing parameters are based on the local coordinate system created by the placing angle.

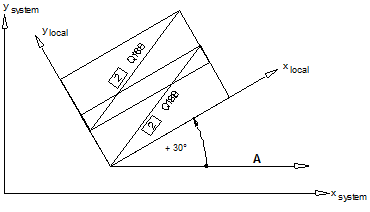

Example for the mesh placing angle

A Horizontal
