Support Reinforcement

Task area Meshes

Support reinforcement is a form of area reinforcement (for other forms of area reinforcement, see the tools described in the Allplan Help). You can find a detailed example in the manual.

For example: Support Reinforcement
Requirement: Method 1: 3D general arrangement drawing with views and sections Method 2: 2D general arrangement drawing with an auxiliary 3D solid Method 3: 2D general arrangement drawing
1	Method 1: 3D model on Method 2: 3D model on Method 3: 3D model off	Reinforce with 3D model option is active or not ( Options, Reinforcement page)
2	Click tool	Support Reinforcement
2a	Methods 1 and 2: Select view:	Click the view you want to assign to the support reinforcement
3	Click points

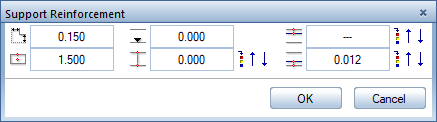

4	Modify the support area and define the layer depth and concrete cover at top

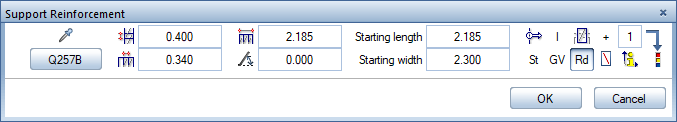

5	Setting parameters
Result:
