Window SmartParts and door SmartParts look better in 2D

We enhanced the look of window SmartParts and door SmartParts at smaller scales.

Think of a door SmartPart with side parts and a block frame, for example. In earlier versions, the door posts are hidden at a scale of 1:200, which sometimes results in gaps. Although this gap is not visible in printouts at 1:200, you can see it when you design details or print details using Print Preview.

The frame elements of window SmartParts are not visible at 1:200. The gaps are closed at 1:500.

At a scale of 1:500, the program displays door SmartParts on the side of the wall where the door opens, regardless of the original position of the SmartPart. Here, too, the gaps are closed.

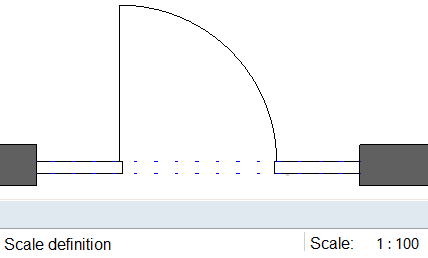

Door SmartParts at different scales
