Allplan Share

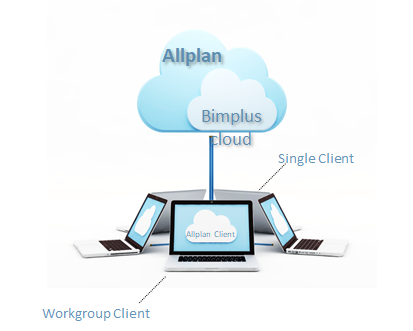

With the Allplan Share option, you can edit native Allplan project data in the cloud. You use the BIM platform Bimplus to save and manage Allplan project data.

The team owner can purchase the Allplan Share option in the Allplan Shop. Any user who wants to open an Allplan Share project must have the Allplan Share option, which is assigned to the user by the Bimplus team owner or team administrator.

Allplan Share projects can also be opened and edited from a standalone Allplan seat, provided the user has at least the role of Project editor in the Bimplus project and the user has been assigned the Allplan Share option by the team owner or team administrator.

Requirements for using Allplan Share:

• You have a Bimplus account.
• You have the Allplan Share option. You can get a trial version for Allplan Share at https://connect.allplan.com/allplan-share.
• You are a Bimplus team owner or team administrator (for creating Allplan Share projects)

Creating new Allplan projects on Allplan Share

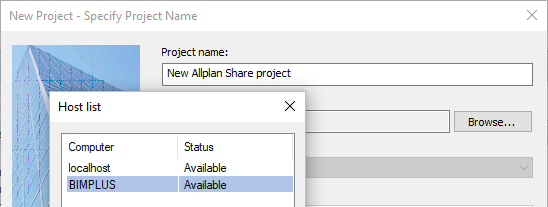

• In Allplan, you can create new Allplan projects directly on Allplan Share. To do this, select BIMPLUS when you create the project and you are prompted to specify where to save the project. This links the Allplan project with the Bimplus project.



Copying or moving existing Allplan projects to Allplan Share

Existing Allplan projects can be copied or moved to Allplan Share:

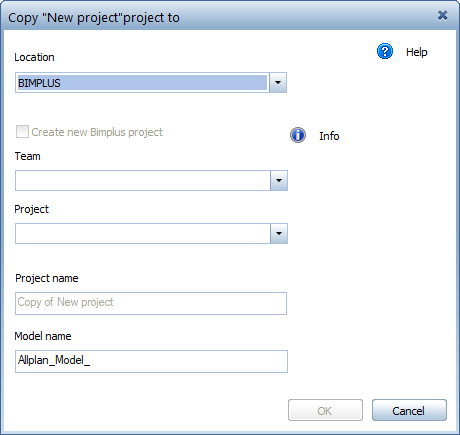

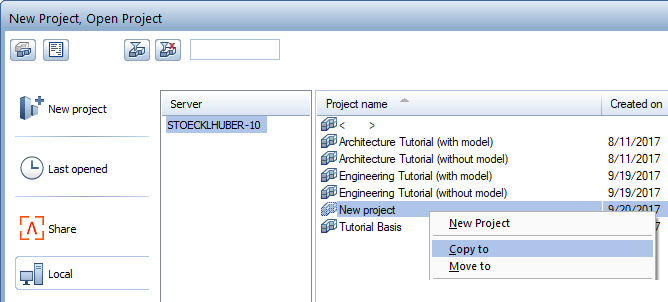

• Open the New Project, Open Project dialog box. Right-click the relevant project and select Copy to or Move to on the shortcut menu. Another dialog box opens. Choose BIMPLUS for the location.



• Select an existing Bimplus project (only possible if this project does not include project data or model data of another Allplan project) or create a new Bimplus project.
