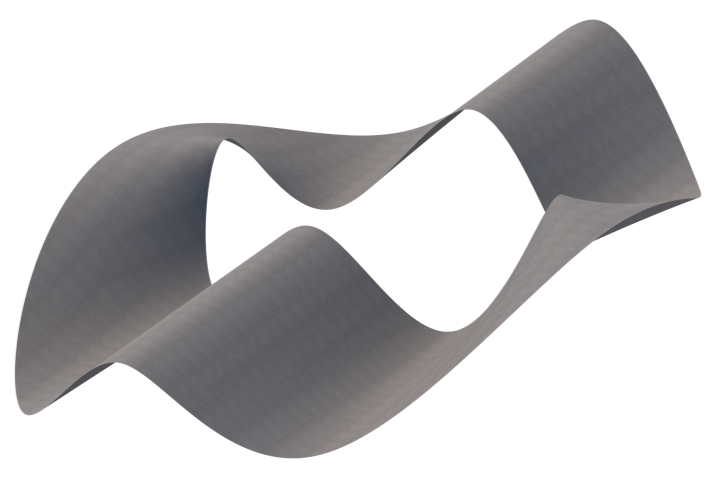

New ‘Closed’ option
Select the Closed option for
Loft to automatically produce a smooth connection between the last profile and the first profile entered (like closed splines). This way, you can use the same profile for the start and end.

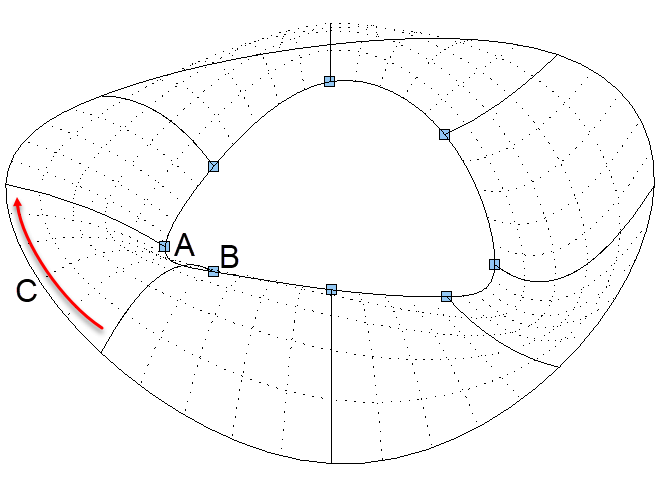

A First profile selected
B Last profile selected
C Closes in the direction of input
Using profiles consisting of curves
In Loft, you can now use profiles consisting of curves as the inner profile or the outer profile, for example. You are no longer restricted to planar profiles only. This way, you can create surfaces with openings or holes.
|
