Allplan Frame

The frame of the Allplan window includes tools. Together with the Actionbar, this results in a clear, task-oriented user interface helping newcomers find their way around the program. What’s more, this enlarges the workspace that is available to you.

Important new features in the Allplan program window

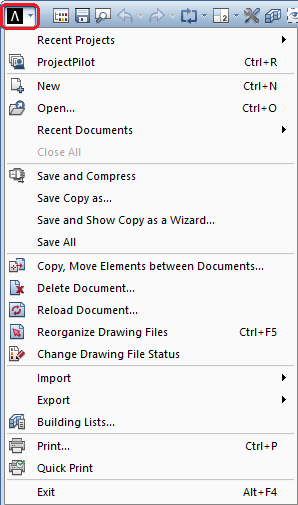

• You can access the most important tools on the File menu by clicking the Allplan icon on the title bar on the left. This is particularly useful when the menu bar is hidden. To hide the menu bar, you can use the quick access toolbar.



• The title bar always includes the Bimplus Login.

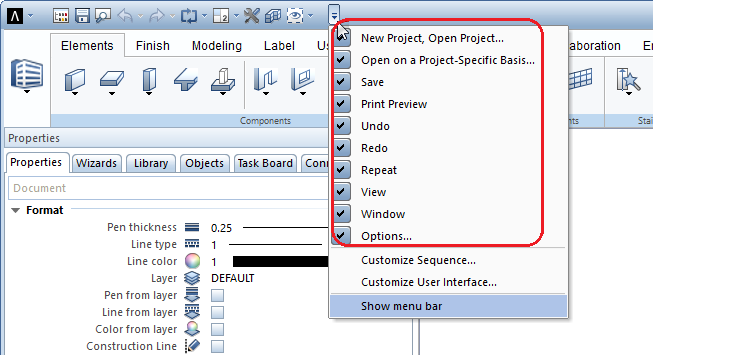

• Using the quick access toolbar, you can show tools on the title bar. Click this toolbar to open a dropdown list where you can select the tools.
  You can add the following tools to the quick access toolbar:
  • New Project, Open Project...
  • Open on a Project-Specific Basis...
  • Save
  • Print Preview
  • Undo
  • Redo
  • Repeat
  • View
  • Window
  • Options...

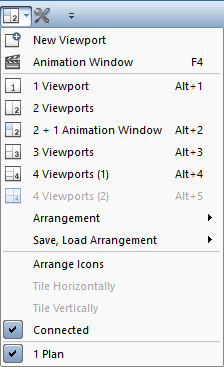

• A dropdown list opens when you click the Repeat (Ctrl+E), View and Window tools on the quick access toolbar.

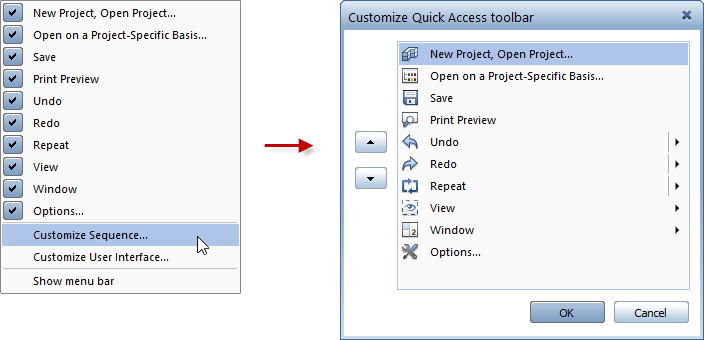

• You can change the sequence of the tools on the quick access toolbar.

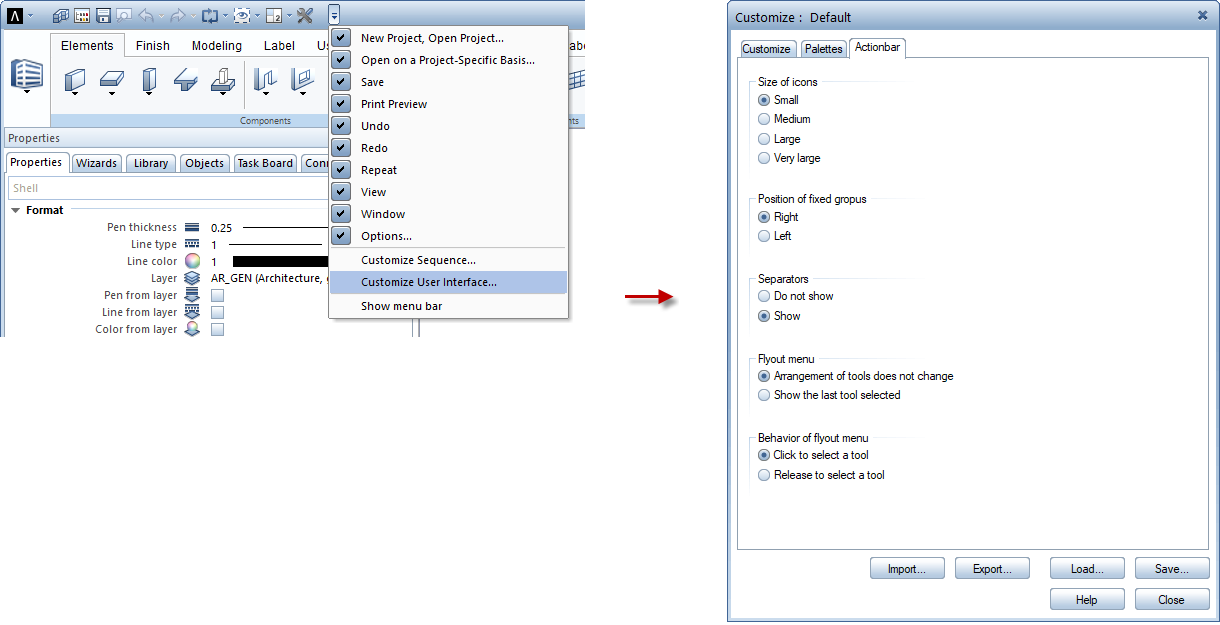

• Click Customize User Interface... to open the Customize dialog box - Actionbar tab. Here, you can control how the Actionbar looks.

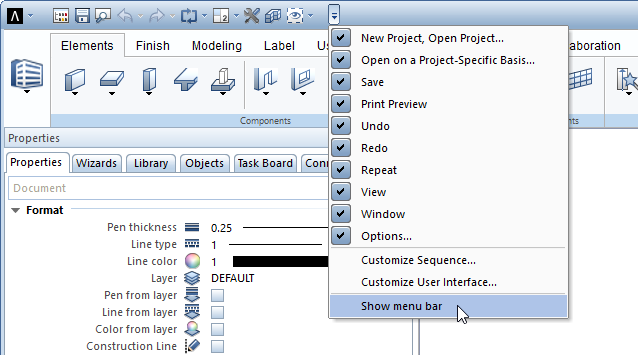

• The menu bar is hidden by default. To show it, click the corresponding tool.



• You can access the Allplan Shop Allplan Shop directly by clicking the corresponding icon in the top right corner of the title bar.



• Click the Help icon to open a dropdown list, where you can activate the Allplan help and get information on the Allplan version installed.
