Conversion procedure (overview)

This section provides an overview of the conversion process (using data import as an example).

To convert files

1. Click Import to start the import.

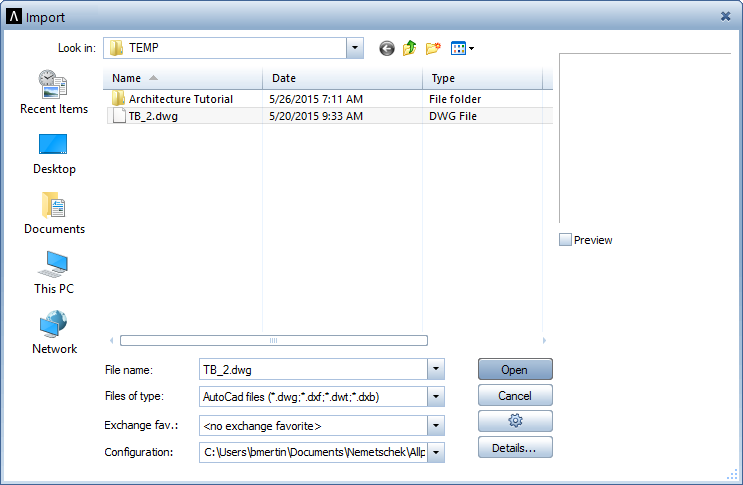

2. In the Open dialog box, select a file type, folder and the file(s) you want to convert.
3. Click Open.
   Allplan starts the automatic assignment.

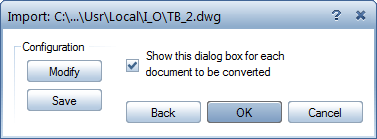

4. Start the conversion by clicking OK.
   Note: Click Modify if you want to check or modify assignments.
5. Finally, check the log file.
