Information on the active drawing file

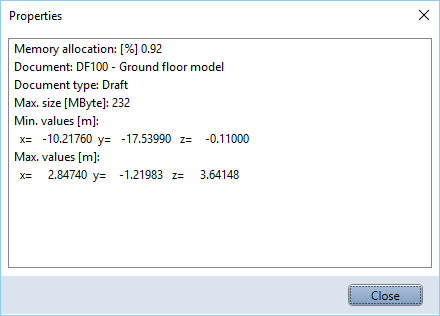

To get information on the active document, right-click in the workspace. On the shortcut menu, choose Properties. An information box with all the important information about the file opens.

Information	Meaning
Memory allocation	This shows how much of the memory reserved for a file has already been allocated (as a percentage). Background information: A certain amount of memory is reserved for files.
Document	This shows the number of the current file. You can also find the number in the title bar of the Allplan application window.
Document type	This shows the file type, which corresponds to the data type icon in the status bar. The data type icon reflects the module used to create the data in a document. This icon is displayed in the status bar and in the dialog box for selecting files and filesets. The following types are available: 2D/3D design, Layout, Views and sections, bar reinforcement, mesh reinforcement, reinforcement components, BAMTEC, Allfem slabs and Allfem discs.
Max. size	This shows the maximum amount of memory available for the file in kilobytes.
Min. values, max. values	This shows the minimum and maximum coordinates in the file.
