CIRCLE

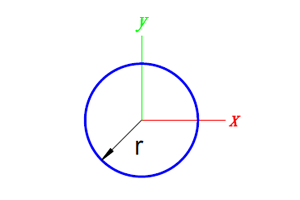

CIRCLE generates a full circle in the XY plane with its center situated in the origin of the coordinate system; it is defined solely by its radius.

Syntax

CIRCLE r

Parameters

r (decimal): radius

Usable since script version 1.1 (Allplan 2012-1).
