ELLIPS

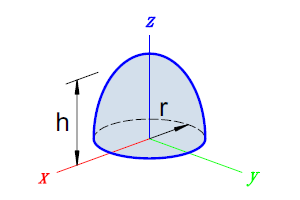

ELLIPS creates a half ellipsoid.

Syntax

ELLIPS h, r

Parameters

h (decimal): half axis along Z axis

r (decimal): radius in origin

Remarks

The ellipsoid's section in the XY plane is a circle centered in the origin.

Usable since script version 1.1 (Allplan 2012-1).
