Bent-up meshes and spacers in mesh cutting diagrams

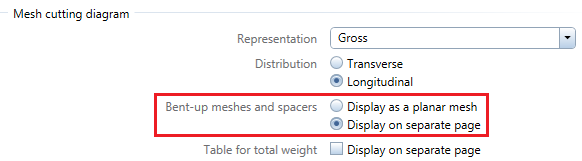

The Options include a setting defining how bent-up meshes and spacers are displayed in mesh cutting diagrams created by the Mesh Reports tool. This setting is now easier to understand.

• When you select Display as a planar mesh, the report displays bent-up meshes and spacers as planar meshes. They are listed consecutively with the other meshes.
• When you select Display on separate page, the report creates separate pages for bent-up meshes and spacers. Bent-up meshes are displayed with their bending shapes and spacers are listed in a table.

Note: This setting has no effect on bent-up meshes and spacers in mesh cutting diagrams created by the Mesh Legend tool. Here, Allplan always displays all elements as planar meshes.
