BIM workflow

Applicable standard

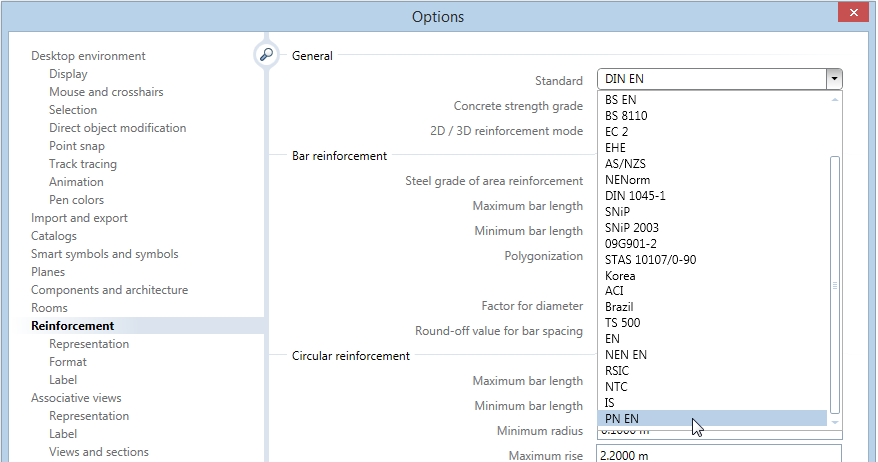

After you have transferred data from Allplan to the FE programs for plates and discs of Nemetschek Frilo GmbH, these program start with the standard set in Allplan. Therefore, we added the Euronorm with the Polish appendix to Allplan. With this standard, you ensure Allplan automatically uses the appropriate default settings.

If you choose an Allplan standard that is not available to the FE programs, these programs will use Euronorm EN 1992.

Multi-layer walls

Wall layers on hidden layers are no longer transferred to the FE programs. The position of the remaining wall layers in relation to the wall axis and the slab geometry stays the same.

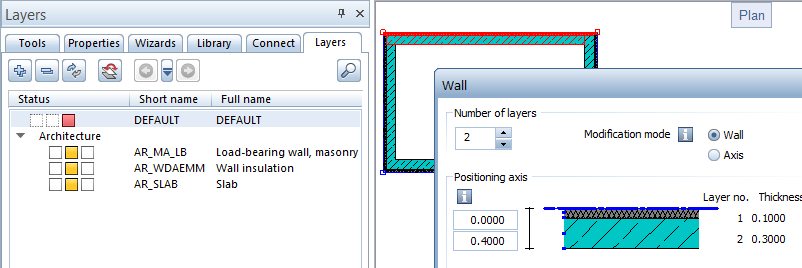

For example: two-layer wall with exterior insulation:

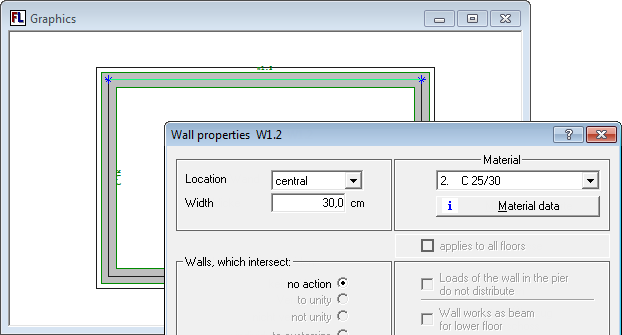

Result in the FE program with the layer for the insulation being hidden:
