Selection option for transferring layer visibility

When working with layout windows and congruent layout elements in earlier versions, you could not select a specific layout element for transferring the layer visibility. Now you can do this by enabling the Selection Option for Ambiguous Elements on/off (Filter Assistant) before you select Transfer Layer Visibility.

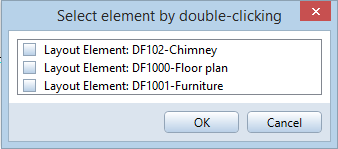

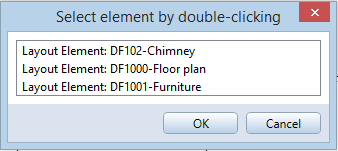

If the program finds several layout elements at the point clicked, you can select the required layout element in a dialog box.

The same applies when you assign the settings: if there are several layout elements, you can select the layout elements in a dialog box.
