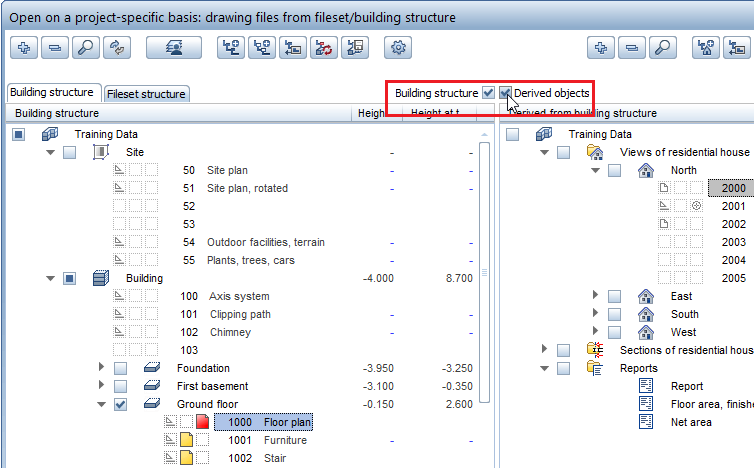

When you open the Building structure tab in the Open on a project-specific basis dialog box, you can now enable or disable the Building structure part (on the left) and the Derived from building structure part (on the right) independently of each other.
If, in earlier versions, you set a drawing file to Current in Derived from building structure, the program automatically set the current drawing file in the Building structure part on the left to Open in edit mode. This is useful if you are working in both parts at the same time. However, this is a rather unusual situation.
If, in Allplan 2015-1, you disable the other part before you select drawing files, the status of the selected drawing files there will not change. Selecting or clearing the check box of the project structural level, on the other hand, also affects the check boxes of all subordinate structural levels.
