Point placement for 2D reinforcement

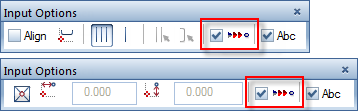

If Reinforce with 3D model is not active in the Options, you can now select Point mode in the input options of the Place Bar Shape tool. The program places the bars of the selected mark as points in the section view. Consequently, you do not need to define the view of the bending shape in relation to the placing line.
