Advanced options for printing layouts

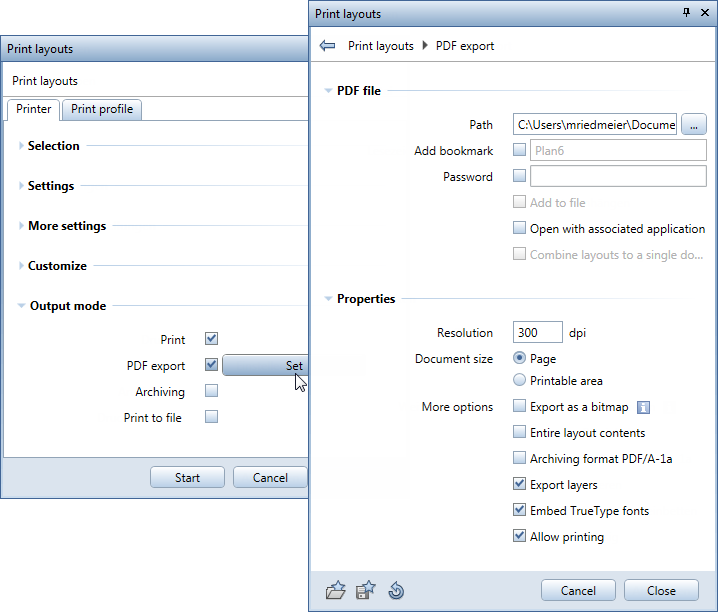

PDF export

The Output mode area includes the additional PDF export option. As a result, you can now print the layout both to paper and to file in several ways. After having selected this option, you can define the parameters for the PDF file by clicking the Set button.

Except for the Use print profile and Grayscale parameters, you can see all the parameters of the Export PDF Data tool. For these two parameters, the program uses the settings on the Print profile tab.

Archiving

You can now control printing using the Print option. You cannot select Print and Print to file at the same time. Only one option can be active at any one time.

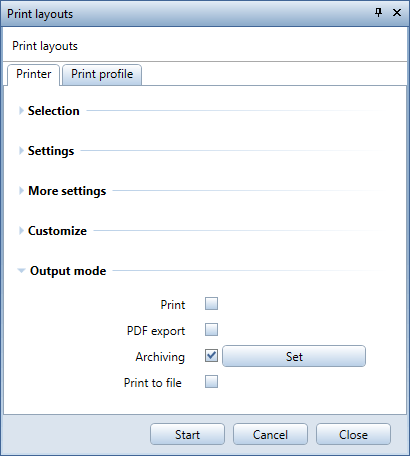

By selecting the Archiving option, you can now archive layouts using the Print Layouts tool. Consequently, you no longer need the Archiving tool. So we removed if from the Create area.
