New parameters for shading SmartParts

You can assign different colors and surfaces for the 3D representation of shading SmartParts (roller shutters, sliding shutters, folding shutters).

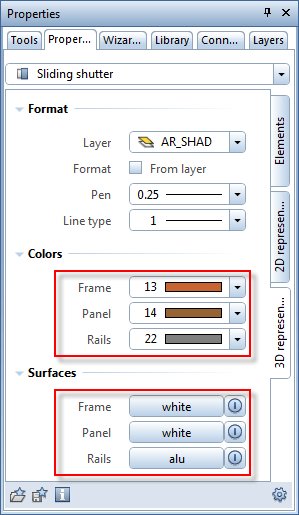

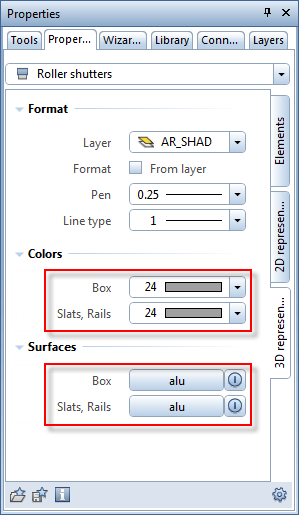

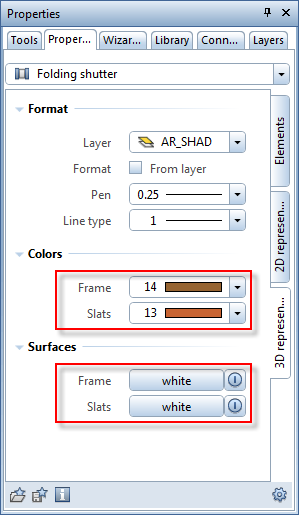

For roller shutters, you can do this for the box and the slats/rails. For sliding shutters, you can do this for the frame, panel and the rails. For folding shutters, you can assign different colors and surfaces to the frame and the slats.

Neu150_SmartPartVorsatzrollladen

Neu150_SmartPartSchiebeladen

Neu150_SmartPartKlappladen01

If you want to use sliding shutters in presentation drawings, you can display them without rails. You can find the corresponding option on the sliding shutters' Elements tab (Verschattung_16 Shading SmartPart tool in the Basic: Walls, Openings, Components module).
