New parameters for window SmartParts and door SmartParts

The Window SmartPart and Door SmartPart tools provide a number of additional parameters.

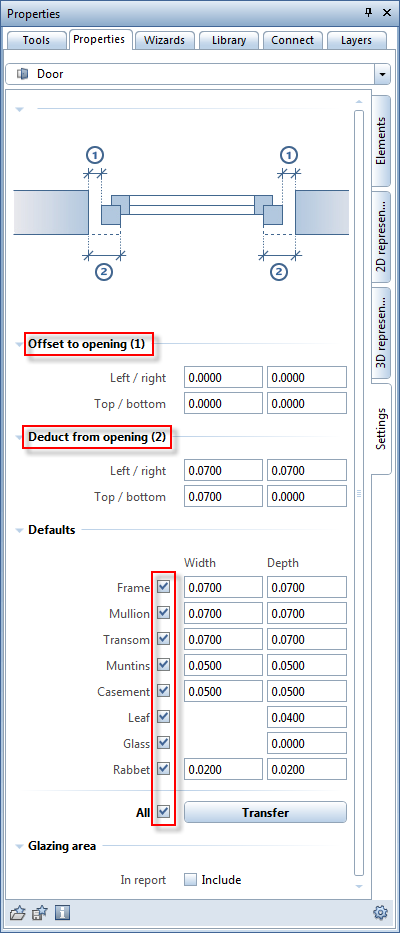

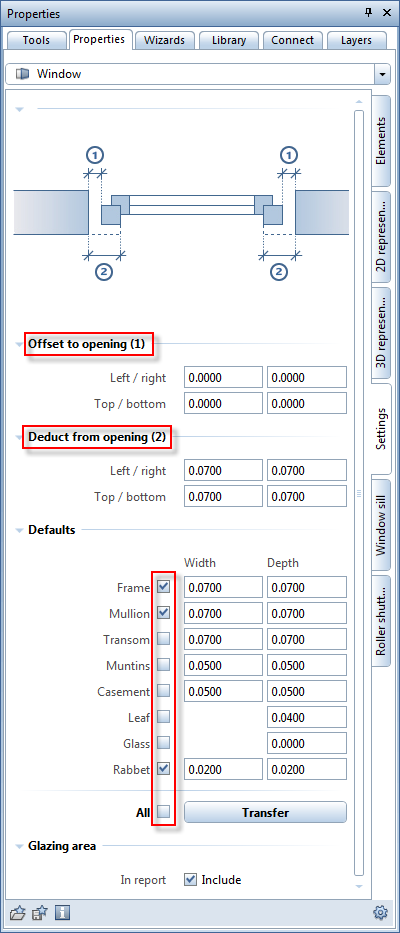

When creating a Window SmartPart or a Door SmartPart, you can now enter values for the SmartPart's Offset to opening (left, right, top, bottom) on the Settings tab. You can analyze these SmartParts using the Reports tool. Open the Finish folder and the Windows, Doors subfolder and choose the new Window offset.rdlc report.
In addition, you can control the clear width of a window SmartPart or a door SmartPart by entering values in the Deduct from opening area.

In the Default area, you can now select individual elements of the SmartPart in order to apply the defaults or the values you defined yourself. All you need to do is click the Transfer button.
If you select All, the program uses the defaults for all the elements of the SmartPart.
