SmartParts

The Basic: Walls, Openings, Components module, Create area, includes a new tool you can use to model SmartParts: the Domed Roof-Light SmartPart tool.

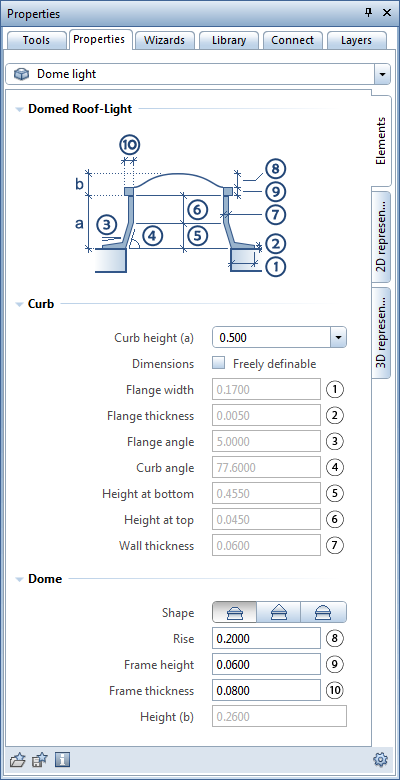

After you have selected this new tool, the Properties palette of the Domed Roof-Light SmartPart opens on the Elements tab. You can immediately start modeling your own SmartPart.

You can insert domed roof-light SmartParts in rectangular openings in slabs and flat roofs. Like any other SmartPart, Domed Roof-Light SmartParts can be modified graphically using handles. Of course, you can also change the parameters in the palette.

You can save your SmartParts as favorite files using Save as a favorite. You can also add them to the library.

You can also find the Domed Roof-Light SmartPart tool in the General: Roofs, Planes, Sections module in the Create area.
