Example of 'Offset Polyline'

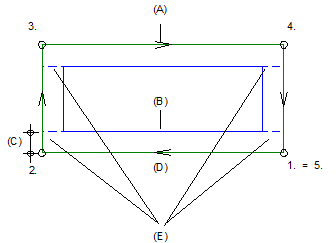

Example 1: right, positive offset

(A) Existing polyline
(B) Line parallel to polyline
(C) Offset
(D) Direction in which polyline is entered
(E) These segments are deleted automatically
1. - 5. Points clicked

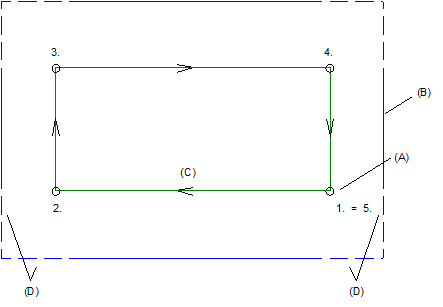

Example 2: left, positive offset

(A) Closed polyline
(B) Line parallel to polyline
(C) Direction in which polyline is entered
(D) These segments are deleted automatically
1. - 5. Points clicked
