Corner window parameters, reveal tab

Corner window parameters

The parameters you can set up depend on the number of construction layers in the wall and whether you want to include reveals in the opening. (You can make this setting in the Parameters area.) Facing on the right/left is taken into account in the reveals.

Type

You can define a reveal style here for walls with multiple construction layers.

Select one of the types presented:

Parameters

Create reveal element

You can choose to show or hide the reveal here.

Depending on the type of reveal you have selected, four different parameters are available. The abbreviations are explained in the legend.

Outer reveal, Inner reveal, Depth

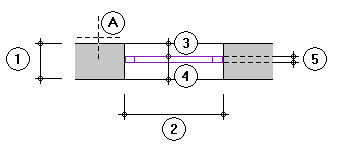

A Wall line clicked = exterior side of opening
1 Thickness of wall
2 Width of opening
3 Outer depth of reveal
4 Inner depth of reveal
5 Depth of opening (e.g. window, door)

Use the Outer reveal, Inner reveal and Window depth or Door depth parameters to define the exact position of the opening element (e.g. smart opening symbol).

The sum of Outer reveal and Inner reveal is the Wall thickness.

Use Window depth or Door depth to define the depth of the opening element which represents the position of the actual opening. Inner reveal includes the Window depth or Door depth value.

When you use smart opening symbols, the depth of the smart symbol should match the depth of the opening element.

Legend

The abbreviations used in the preview are explained here.

Open/save favorite file

When you want to save a defined reveal as a favorite file, click in the tab.
To retrieve a favorite file, click .

Input side of opening width

The exterior side is always to be used to enter the opening width of corner windows; i.e. the side of the wall/corner you clicked when entering the corner window.
