Modifying curved walls and curved components directly

Allplan 2014-1 provides the same direct modification options for curved walls and other curved components (downstand beams, upstand beams, upstands, strip foundations and so on) as for circles and segments of circles. Now you can directly modify all the parameters relevant to the geometry of these components, such as radius, start and end points of an arc, position and proportions, arc length, rise and so on.

Here, too, the same decisive factors apply:

• The handle you use after you have selected a curved component,

  and

• The subsequent setting on the context toolbar.

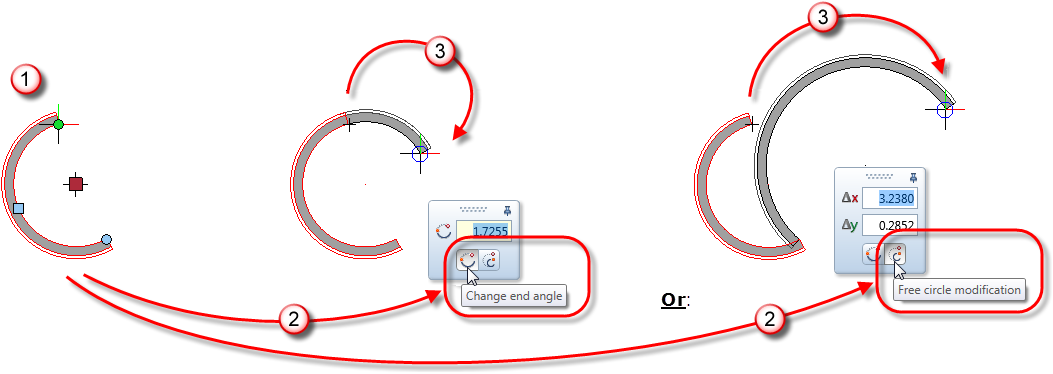

Using a point handle

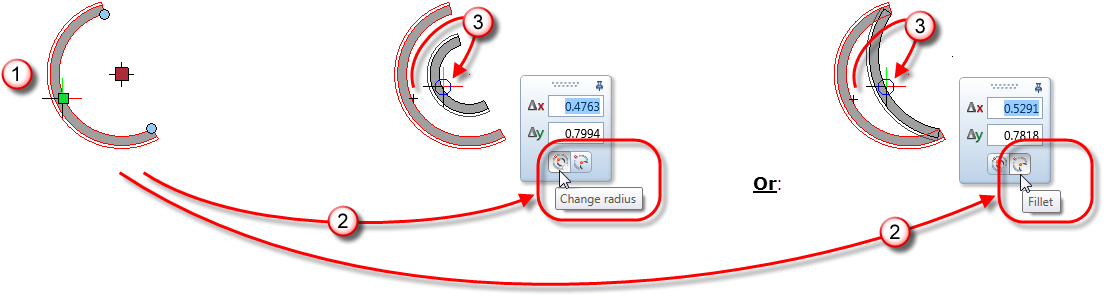

Using the geometry handle

For more information see "Modifying circles and ellipses directly".
