Templates for reinforcement labels

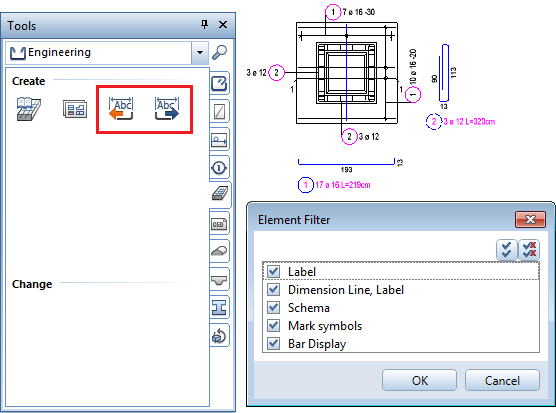

Label patterns are no longer limited to element plans. You can now use label patterns for concrete components in reinforcement drawings, too. This helps optimize the task-sharing workflow for both the structural engineer and the draftsman. The first step involves creating the reinforcement in isometric views or directly in the model. In a second step, the required views and sections can be created and labeled. To do this, you can find the two new Export Label Pattern and Import Label Pattern tools in the Concrete Construction module. During export you can define the elements to be included in the label pattern in a dialog box.
