Number of elements

The Number of elements, which you can specify in some reports, is now saved in the selected drawing files when you close the report. The next time you create a report, this factor is retrieved and automatically entered.
If you create a report based on drawing files with different factors, the program issues a message and the number of elements is set to 1. In this case, changes to the factor are not saved in the drawing files. In other words, the original factors are retained and cannot be overwritten inadvertently.

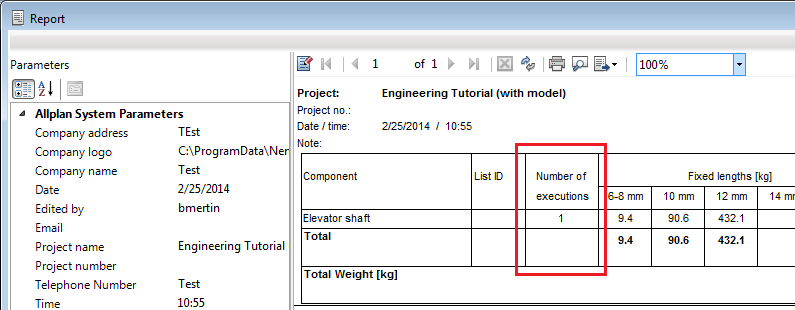

The Reinforcement - overview report includes an additional column for the Number of elements. The corresponding factor is entered in this column and included in calculations of the total steel quantity in the project.
